PSPH Series Heavy-duty Level Compensator

Name: PSPH Series Heavyduty Level Compensator
Brand: NBSANMINSE
Price: 1 USD

Brand Name : NBSANMINSE

Model Number : PSPH-E25G2M-M20

Place of Origin : CHINA

MOQ : 10PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Certification : ISO9001

Price : Negotiation

Payment Terms : L/C,T/T

Buffer type : E - External spring

Buffer stroke : 25

Rotary type : Nil - Vertical rotating

Suction cup : G2M - G1/4 male thread

Mounting thread : M20 - M20×1.5

Contact Now

Features

◇ Oilless, wear-resistant bushing is built in the guide sleeve

◇ Heavy duty external buffer spring

◇ Non-rotating type can be selected

◇ Various buffer stroke specifications are available

◇ Suitable for heavy duty working condition

Advantages

◇ Reduce product wear, improve the lifetime of the products and

reduce the noise

◇ Suitable for the workpieces with uneven surface and working

conditions which need height compensation

◇ Suitable for precise positioning of oval suction cup

◇ Suitable for various working conditions

Applications

◇ Suitable for handling workpieces with height difference

◇ Suitable for working condition which needs shock absorption

when handling objects

◇ Suitable for working condition that is with short working period

and fast handling

◇ Non-rotating level compensator is suitable for oval suction cup

◇ Especially suitable for handling in automotive industry

PSPH Series Heavy-duty Level Compensator

Structure

◇ (1) Vacuum generator connection

◇ (2) Guide sleeve

◇ (3) Mounting nut

◇ (4) Guide rod

◇ (5) Suction cup connection

PSPH - E 25 R G3M - M30
①②③④⑤⑥
①Series	②Buffer type	③Buffer stroke	④Rotary type	⑤Suction cup connection	⑥Mountingthread
PSPH	E-Extemal spring	25	Nil-Vertical rotating	G2M-G1/4male thread	M20-M20×1.5
		50	R-Verticalnon-rotating	G3M-G3/8male thread	M30-M30×1.5
		75		G4M-G1/2male thread
		90

Selection
Model/Connection thread
G2M	RG2M	G3M	RG3M	G4M	RG4M
PSPH-E25G2M-M20	PSPH-E25RG2M-M20	PSPH-E25G3M-M30	PSPH-E25RG3M-M30	PSPH-E25G4M-M30	PSPH-E25RG4M-M30
PSPH-E50G2M-M20	PSPH-E50RG2M-M20	PSPH-E50G3M-M30	PSPH-E50RG3M-M30	PSPH-E50G4M-M30	PSPH-E50RG4M-M30
PSPH-E75G2M-M20 PSPH-E90G2M-M20	P5PH-E75RG2M-M20 P5PH-E90RG2M-M20	PSPH-E75G3M-M30	PSPH-E75RG3M-M30	PSPH-E75G4M-M30	PSPH-E75RG4M-M30
		PSPH-E90G3M-M30	PSPH-E90RG3M-M30	PSPH-E90G4M-M30	PSPH-E90RG4M-M30

Technical parameters
Model	Pretightening force(1) N	Elastic force(2)N	Vertical load(3) N	Working temperature ℃	Weight g
PSPH-E25(R)G2M-M20	7.5	15.8	2,400	0~80	148
PSPH-E50(R)G2M-M20	14.4	20	2,400	0~80	174
PSPH-E75(R)G2M-M20	6	16	2,400	0~80	198
PSPH-E90(R)G2M-M20	6	15.7	1,500	0~80	210
PSPH-E25(R)G3M-M30	19.4	73	4,800	0~80	408
PSPH-E50(R)G3M-M30	24.7	78.5	4,800	0~80	483
PSPH-E75(R)G3M-M30	39	79.6	4,800	0~80	561
PSPH-E90(R)G3M-M30	26.4	74.5	4,800	0~80	580
PSPH-E25(R)G4M-M30	19.4	73	4,800	0~80	408
PSPH-E50(R)G4M-M30	24.7	78.5	4,800	0~80	483
PSPH-E75R)G4M-M30	39	79.6	4,800	0~80	561
PSPH-E90(R)G4M-M30	26.4	74.5	4,800	0~80	580

◇ Note: 1. Pretightening force is spring elastic force when spring is compressed in nature state

2. Elastic force is spring elastic force when level compensator is compressed in 50% stroke, it is suggested that the actual working compressed

stroke of level compensator should not exceed 50% of its max. compressed stroke

3. Vertical load refers to the max. vertical tension that the level compensator can bear in static state

4. When the level compensator is installed horizontally, the workpiece will produce gravity perpendicular to the direction of the level compenasator,

If the gravity is larger than the horizontal load range, the spring may get stuck

Product Tags:

heavy-duty pneumatic level compensator

PSPH series solenoid valve

industrial pneumatic level control valve

China PSPH Series Heavy-duty Level Compensator wholesale

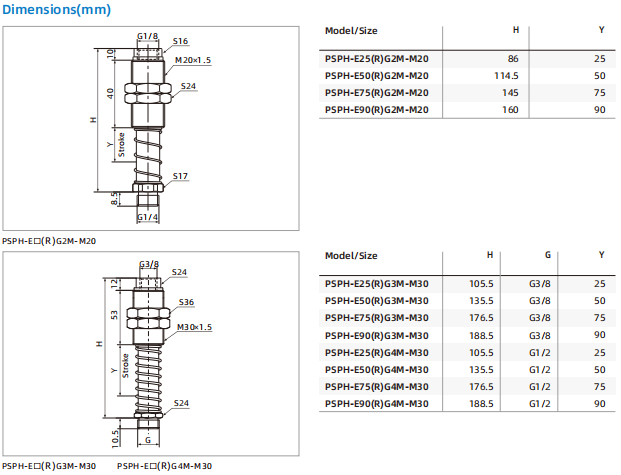

PSPH Series Heavy-duty Level Compensator Images
