SOB Series Oval Suction Cup Special for Metal Sheet

Brand Name : NBSANMINSE

Model Number : SOB30×60

Place of Origin : CHINA

MOQ : 10PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Certification : ISO9001

Price : Negotiation

Payment Terms : L/C,T/T

Vertical pull-out : 53force N

Lateral pull-out : 50(Oily surface)N

Inner volume : 8.7 cm³

Min.curve radius of : 25mm

Contact Now

Features
  • 1.5 Bellows oval structure
  • Internal large area pattern support structure
  • Various sizes and specifications are available
Advantages

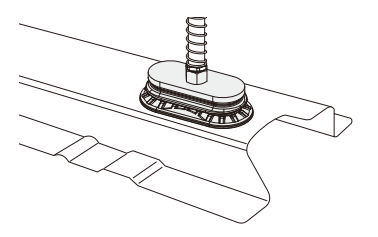

  • Handling long and narrow workpieces with even surface or curvature
  • The max. temp of HK material is 250℃, it can be used to pick up high temp metal sheet
  • The max. temp of HD material is 160℃, it can be used to pick up high temp glass without mark
  • Suitable for workpieces with different sizes and shapes
Applications
  • Handling narrow and long metal parts in fast speed, short cycle time
  • Handling metal sheet and aluminum plates without deformation
  • Handling automotive stamping metal parts
SOB Series Oval Suction Cup Special for Metal Sheet
Structure
  • 1.5 Bellows structure
  • Suction cup and fitting are one-piece structure
SOB Series Oval Suction Cup Special for Metal Sheet
SOB 30×60 N-G3F
① ② ③ ④
① Series ②Size ③ Material & Hardness
④ Connection thread
SOB 30×60 N - NBR 60 G2F-G1/4female thread

40×80 HK-Extra high temp rubber 65 G3F-G3/8female thread

55×110 HD-High temp/mark free material 60 G2M - G1/4 male thread
70×140

M10M-M10×1.5male thread



M14M-M14×1.5 male thread
RA-Rectangular adapter
Selection
Model Connection thread G2M M1M M14M G2F G3F RA
SOB30×60N-□ SOB30×60N-G2M SOB30×60N-M10M SOB30×60N-M14M SOB30×60N-G2F SOB30×60N-G3F SOB30×60N-RA
SOB40×80N-□ SOB40×80N-G2M SOB40×80N-M10M SOB40×80N-M14M SOB40×80N-G2F SOB40×80N-G3F SOB40×80N-RA
SOB55×110N-□ SOB55×110N-G2M SOB55×110N-M10M SOB55×110N-M14M SOB55×110N-G2F SOB55×110N-G3F SOB55×110N-RA
SOB70×140N-□ SOB70×140N-G2M SOB70×140N-M10M SOB70×140N-M14M SOB70×140N-G2F SOB70×140N-G3F SOB70×140N-RA
Model Connection thread G2M G2F G3F
SOB30×60HK- □ SOB30×60HK-G2M SOB30×60HK-G2F SOB30×60HK-G3F
SO40×80HK-□ SOB40×80HK-G2M SOB40×80HK-G2F SOB40×80HK-G3F
SOB55×110HK-□ SOB55×110HK-G2M SOB85×110HK-G2F SOB55×110HK-G3F
SOB70×140HK-□ SOB70×140HK-G2M SOB70×140HK-G2F SOB70×140HK-G3F
Model Connection thread G2M G2F G3F
SOB30×60HD- □ SOB30×60HD-G2M SOB30×60HD-G2F SOB30×60HD-G3F
SOB40×80HD-□ SOB40×80HD-G2M SOB40×80HD-G2F SOB40×80HD-G3F
SOB55×110HD-□ SOB55×110HD-G2M SOB55×110HD-G2F SOB55×110HD-G3F
SOB70×140HD-□ SOB70×140HD-G2M SOB70×140HD-G2F SOB70×140HD-G3F
Technical parameters
Model Vertical
pull-outforce
N		 Lateral
pull-outforce
N		 Lateral
pull-out force
(Oily surface)N		 Inner
volume
cm³		 Min.curve radius
of workpiece
мм		 Weight g Recommended
hose dia.
мм		 MPQ
pcs
SOB30×60 53 60 50 8.7 25 26 6 1
SOB40×80 110 118 101 20 32 33 8 1
SOB55×110 197 200 183 50 50 75 8 1
SOB70×140 275 295 267 100 70 117 8 1

Technical parameters
Model Vertical
pull-outforce
N		 Lateral
pull-outforce
N		 Lateral
pull-out force
(Oily surface)N		 Inner
volume
cm³		 Min.curve radius
of workpiece
мм		 Weight g Recommended
hose dia.
мм		 MPQ
pcs
SOB30×60 53 60 50 8.7 25 26 6 1
SOB40×80 110 118

 101

 20 32 33 8 1
SOB55×110 197 200 183 50 50 75 8 1
SOB70×140 275 295 267 100 70 117 8 1

Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor. The data may be different according to different workpiece surfaces

SOB Series Oval Suction Cup Special for Metal Sheet

M - Male thread connection

Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
