SZ Series Standard Suction Cup

Name: SZ Series Standard Suction Cup
Brand: NBSANMINSE
Price: 1 USD

China SZ Series Standard Suction Cup wholesale

Brand Name : NBSANMINSE

Model Number : SZC10

Place of Origin : CHINA

MOQ : 10PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Certification : ISO9001

Price : Negotiation

Payment Terms : T/T,L/C

Suction cup type : U - Flat

Diameter : 2 - φ2mm 16 - φ16mm

Power Type : Air

Warranty : 1 Year

Series : sz

Contact Now

Features

◇ Available in various shapes: U type, C type , B type and D type

◇ Simple structure

◇ Conductive material available

◇ Available in various sizes

Advantages

◇ Small size and light weight

◇ Suitable for workpieces of various sizes and shapes

Applications

◇ U type suitable for workpieces with even surface and without deformation

◇ C type suitable for easily deformed workpieces

◇ B type suitable for workpieces with inclined surface

◇ D type suitable for spherical objects

◇ Suitable for handling of paper box, small sized semiconductor, spherical

objects and food, ect.

◇ Conductive material suitable for 3C industry

Structure

◇ Split structure for easy replacement of wearing parts

How to orde

◇ Note: HP material is not for all sizes. Please contact AIRBEST if need

Selection

Technical parameters

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m.

Dimensions(mm)

◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard

Structure

◇ Consisting of replacement suction cup and locking fitting

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port, male and female thread for mounting

◇ Lateral vacuum port, male and female thread for mounting

In the same series, replacement suction cup and locking fitting can be combined as required

How to order

◇ Please refer to page 64 for suction cup selection

Selection

◇ Note: "●" default, in stock, "-" unavailable

Dimensions(mm)

Structure

◇ Consisting of replacement suction cup(3) and level compensator

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), male thread for mounting

In the same series, replacement suction cup and locking fitting can be combined as required

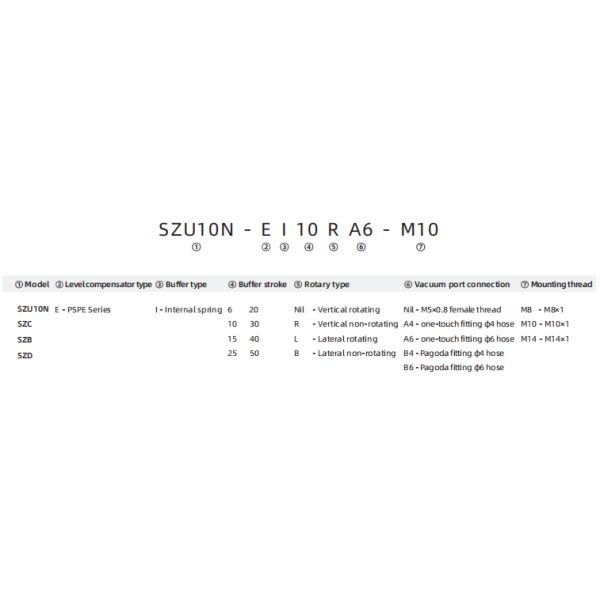

How to order

◇ Please refer to page 64 for suction cup selection

Selection

Dimensions(mm)
